2025 New product launching

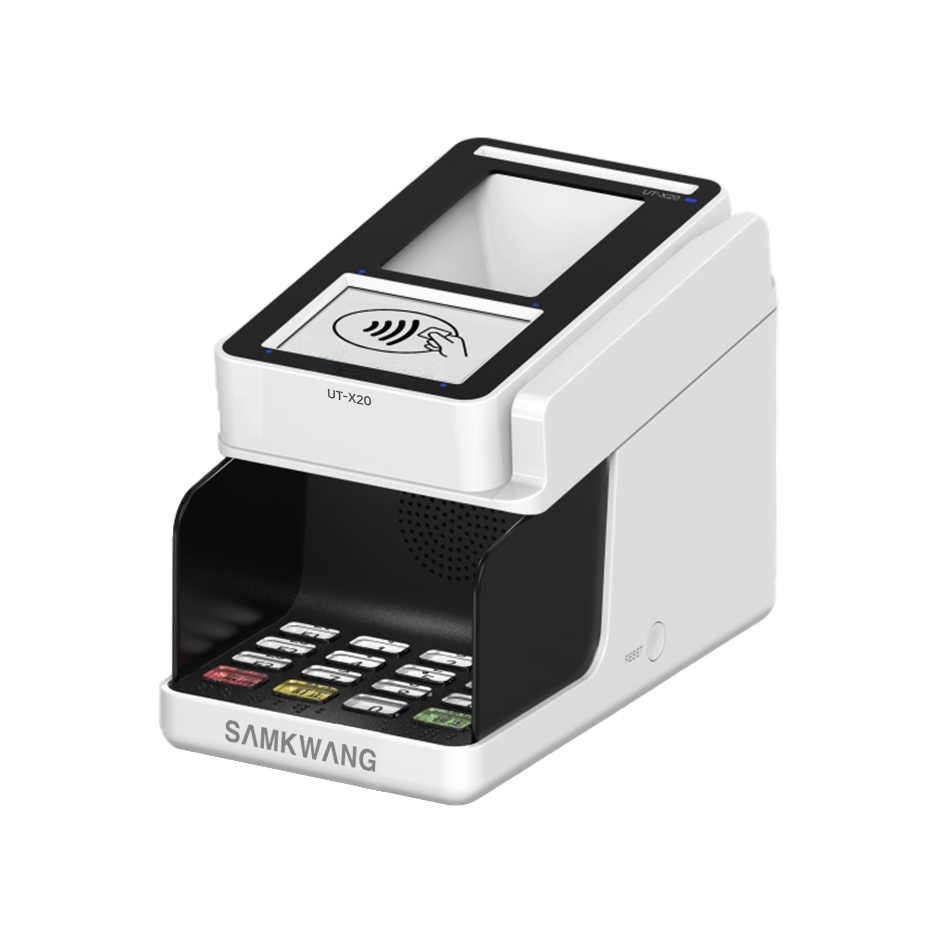

Payment terminal
New
Product Model no. UT-X20
  • Credit card, EMV Contact, EMV Contactless, MSR, Barcode payments
  • Approved security certification PCI-PTS ver6.x
  • 2.4 Inch Color LCD with resistive touch
  • Numeric and function keypad
  • USB Interface and Ethernet
Specifications
OS

Embedded Linux(4.1.15)
CPU

ARM Cortex-A7
Display

2.4" TFT LCD(240 x 320) with resistive touch
I/F

IEEE 802.3 10/100Mbps USB 2.0 (1 Client)
Function

MSR Dual-Head

Contact IC, Contactless IC

Scanner (1D/2D)
Power

Input : 100~240V, 50/60Hz

Output : DC 5V@2A
Size

153 x 85 x 106.5(H)

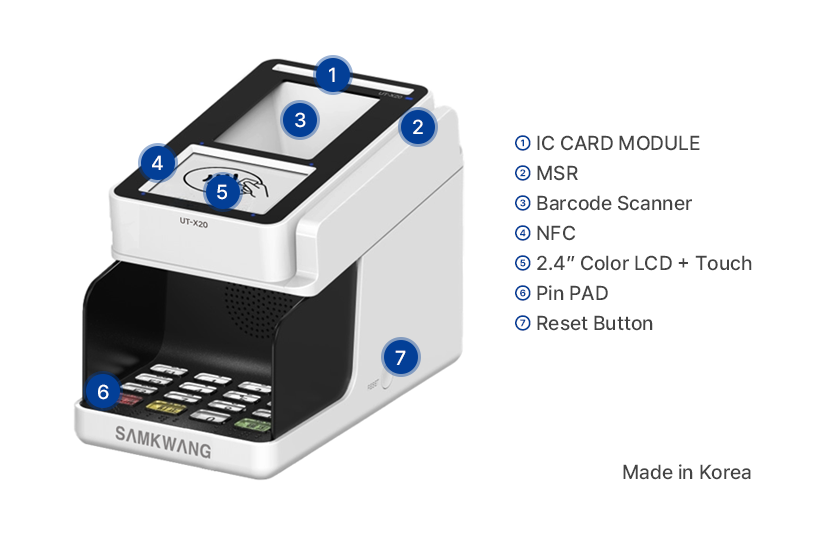

Safe, Easy and Intuitive

MSR, Contact & Contactless IC-Card, Barcode, QR Code payments support

Approved PCI-PTS ver6.x

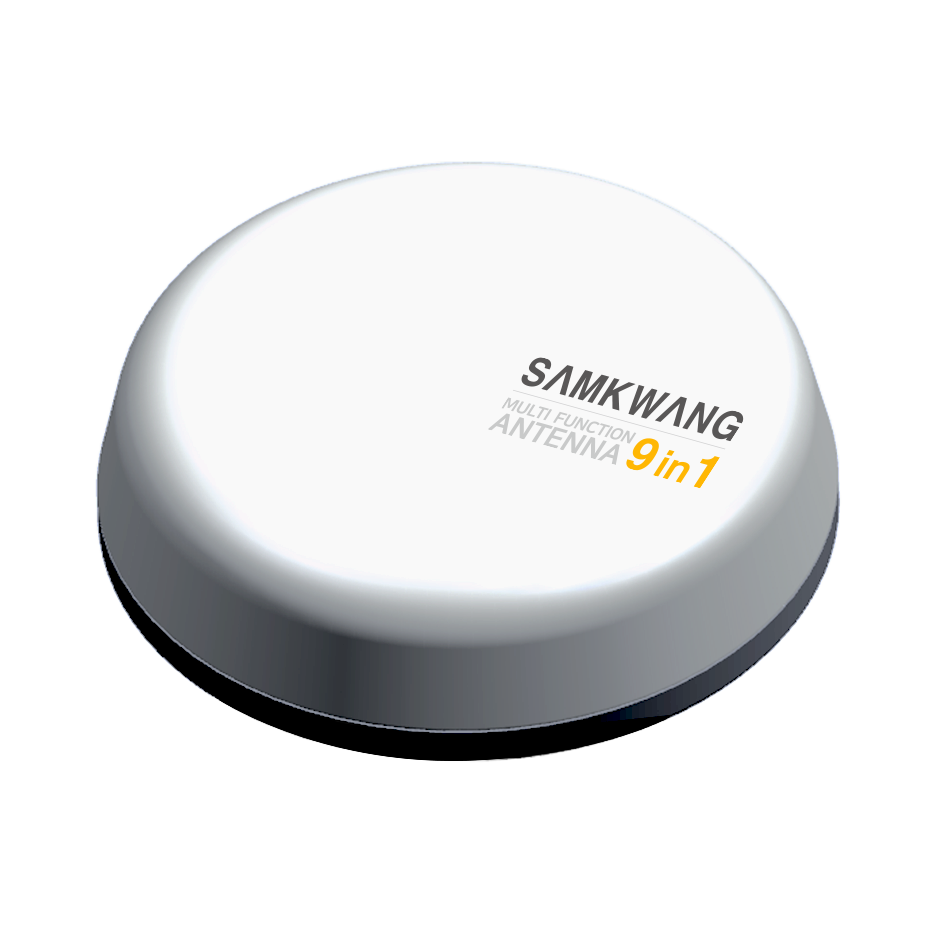

Multi function Antenna(9-in-1)
New
Product Model no. 9-in-1
  • Multi function Antenna for ADAS* and ISM**
  • 5G/4G, HD-GNSS, V2X, Wi-Fi(2.4GHz/5GHz), Bluetooth
  •  * ADAS(Advanced Driver Assistance System) : Advanced driver assistance system that helps drivers drive safely and comfortably.
  • ** ISM(Industry·Science·Medical) : Frequency band used in industry·science·medical, etc.
Specifications
Function

HD-GNSS : L1 & L2 & L5

5G/4G-4ch : 617 to 6000MHz

V2X-2ch : 5850 to 5925MHz

Dual WiFi : 2.4GHz/5GHz

Bluetooth : 2400 to 2483.5 MHz
Operating Temperature

-40℃ to +90℃
ESD

Air ±30kV, Contact ±8kV

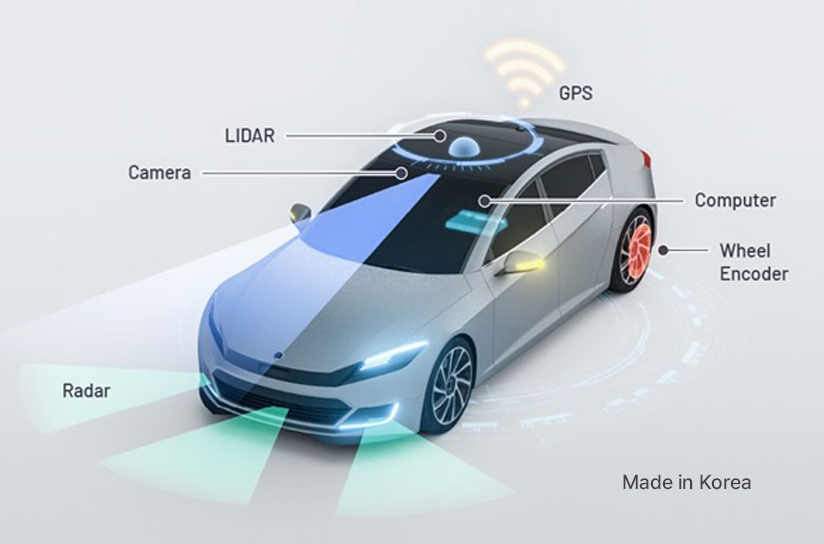

Advanced Driver Assistance System

Telematics System

Multimedia System
