R&D
Always heading for higher Technology
Always towards higher technology.
  • Innovation that enables customers to realize their dreams and ideals
  • Drive enterprise future growth through continuous core technology acquisition
Lab Objectives and VisionEstablishment of GLOBAL Product Laboratory System
objective
Operational goal
Building IT and Automotive Product Design Foundations
vision
Vision
Creating new added value through designing an idea-applied product
competitiveness
Builds a competitive foundation
  • 1
    Ability to design IT and green products
    • Idea-based IT technology and green products
    • Self-development of core technologies in conjunction with professional companies
  • 2
    Automotive Product Design Capability
    • Camera, touch sensor/ultrasonic/radar, motor application input/output technology and products
    • Establishment of cooperation with automotive primary companies Securing technology for electronic equipment based on small sensors
  • 3
    Support for global hub design
    • Establishment of local response design system in China, Vietnam, and India
    • Product development and technical support for local customers
New Biz

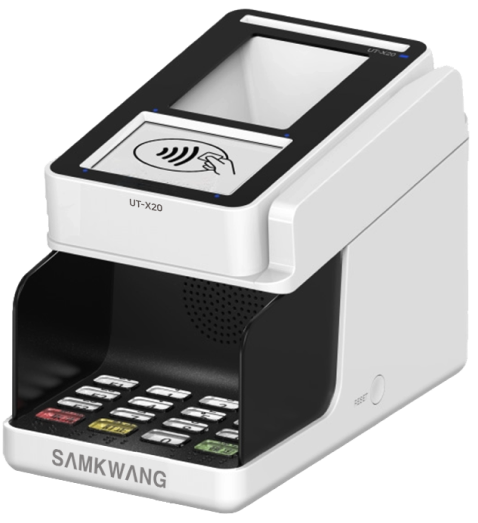

Payment Terminal
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  1. ① IC CARD MODULE
  2. ② MSR
  3. ③ Barcode Scanner
  4. ④ NFC
  5. ⑤ 2.4" Color LCD + Touch
  6. ⑥ Pin PAD
  7. ⑦ Reset Button
  • Credit card, EMV Contact, EMV Contactless, MSR, Barcode payments
  • Approved security certification PCI-PTS ver6.x
  • 2.4 Inch Color LCD with resistive touch
  • Numeric and function keypad
  • USB Interface and Ethernet
Specifications
OS
Embedded Linux(4.1.15)
CPU
ARM Cortex-A7
Display
2.4" TFT LCD(240 x 320) with resistive touch
I/F
IEEE 802.3 10/100Mbps USB 2.0 (1 Client)
Function
MSR Dual-Head
Contact IC, Contactless IC
Scanner (1D/2D)
Power
Input : 100~240V, 50/60Hz, DC 5V@2A
Size
153(L) x 85(W) x 106.5(H) mm
key technology
  • Safe, Easy and Intuitive MSR, Contact & Contactless IC-Card, Barcode, QR Code payments support Approved PCI-PTS ver6.x

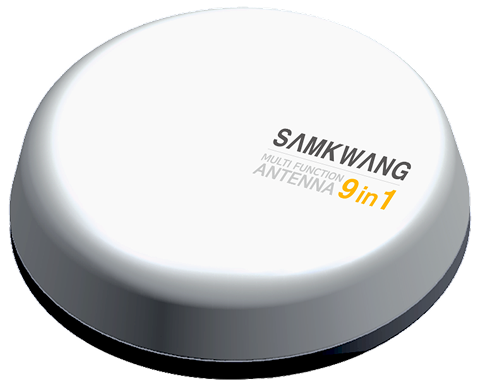

Multi Function Antenna

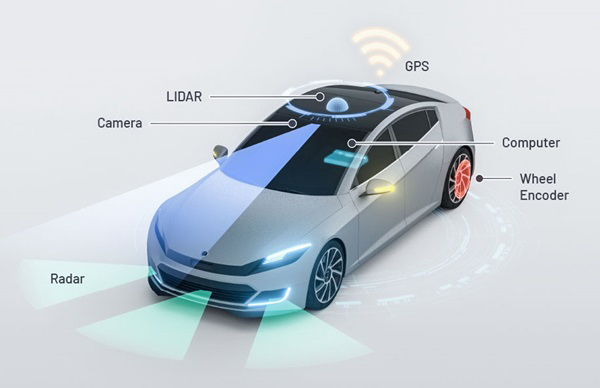

  • Multi function Antenna for ADAS* and ISM**
  • 5G/4G, HD-GNSS, V2X, Wi-Fi(2.4GHz/5GHz), Bluetooth
  • * ADAS(Advanced Driver Assistance System) : Advanced driver assistance system that helps drivers drive safely and comfortably.
  • * ISM(Industry·Science·Medical) : Frequency band used in industry·science·medical, etc.
Specifications
Function
HD-GNSS : L1 & L2 & L5
5G/4G-4ch : 617 to 6000MHz
V2X-2ch : 5850 to 5925MHz
Dual WiFi : 2.4GHz/5GHz
Bluetooth : 2400 to 2483.5 MHz
Operating
Temperature
-40℃ to +90℃
ESD
180(D) x 44(H) [mm]
key technology
  • Advanced Driver Assistance System
  • Telematics System
  • Multimedia System

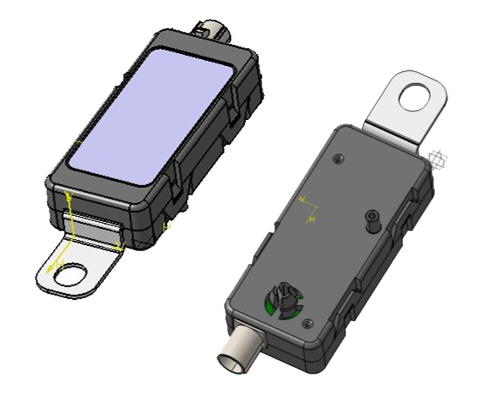

FM DAB Amplifier
  • 1
  • 2
  • 3
  • 4
  1. ① Label Area
  2. ② Mounting Hole
  3. ③ Anti Rotation
  4. ④ Mounting boss
Variant Connector Remark
FM + DAB - Input : MQS 3Pin(Tyco : 1-1355730-1)
- Output : FAKRA 1Pin_CODE_B (Rosenberger : 59S2AQ-40MT5-B_1) 		Pin1 : DAB
Pin2 : Diag
Pin3 : FM
FM Only
Specifications
Frequency
FM : 87.5 ~ 108 MHz
DAB : 168 ~ 240 MHz
Output
impedance
50Ω
Operating voltage
range
8±0.5V
Operating temperature
range
-40 ~ 95°C
FM Gain
5-6dB with allowable tolerance of ± 2dB
FM Noise figure
≤ 3.5dB
FM IM3
≥ 60 dB with input level of 100dBμV @ 90/92MHz
FM AGC
95±3 dBμV threshold
Consuming current
FM ≤ 60mA
FM + DAB ≤ 130mA
DAB Noise Figure
≤ 3dB
DAB Gain
15±2dB
DAB IM3
≥ 55dB with output level of 105dBμV

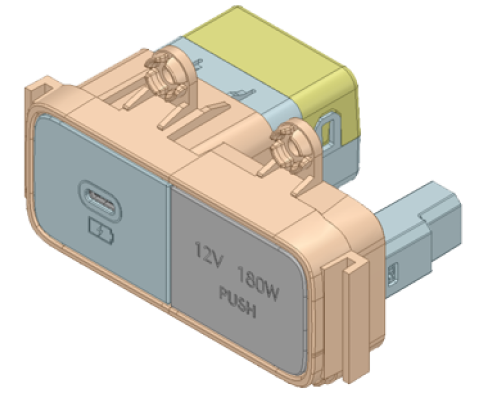

PD Specifications
BEZEL
Push & Open
Top Cover
Bottom Cover
Front Cover
PCB
Shield-can
Specifications
PD specifications
Ver. 3.1
Power supply method
Programmable power supply(PPS)
Input voltage
DC 12~24V
Output power
Adjustable output power up to 100W
(5V,9V,15V/3.0A, 20V/5.0A)
Protection
Implementation of charging cutoff function at set temperature (e.g., ambient temperature 120°C)
VBATT to GND short protection
Output port
USB Type-C
Size
totally 87 x 36 x 60 (WxDxH mm)
w only case 40 x 31x 60 (WxDxH mm)
R&D2nd floor, KTM Building, 46, Gunpo Advanced Industrial Complex 2-ro, Gunpo-si, Gyeonggi-do
Panorama View
Opening Ceremony (2021.2.22)

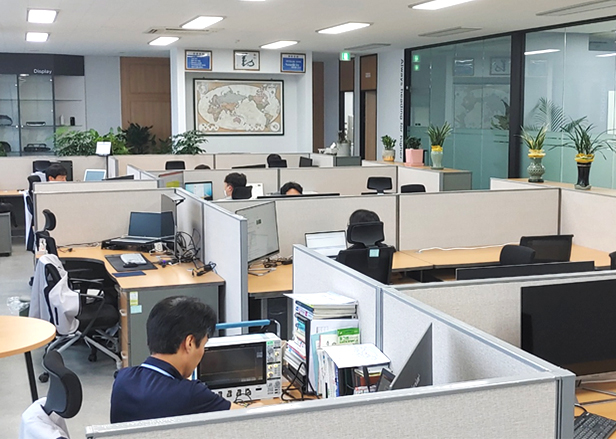

Inside View
Inside View

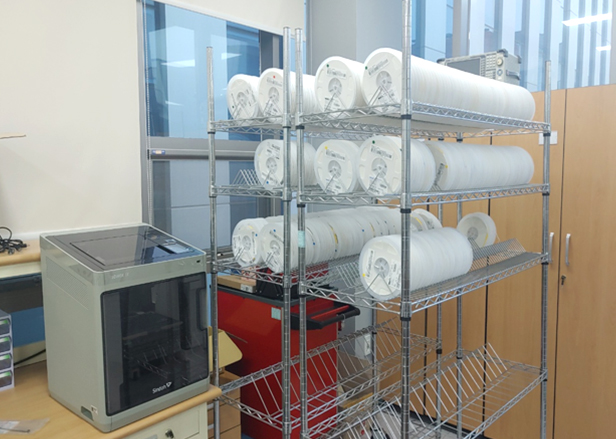

Test Room
Test Room
Test Room
Test Room
